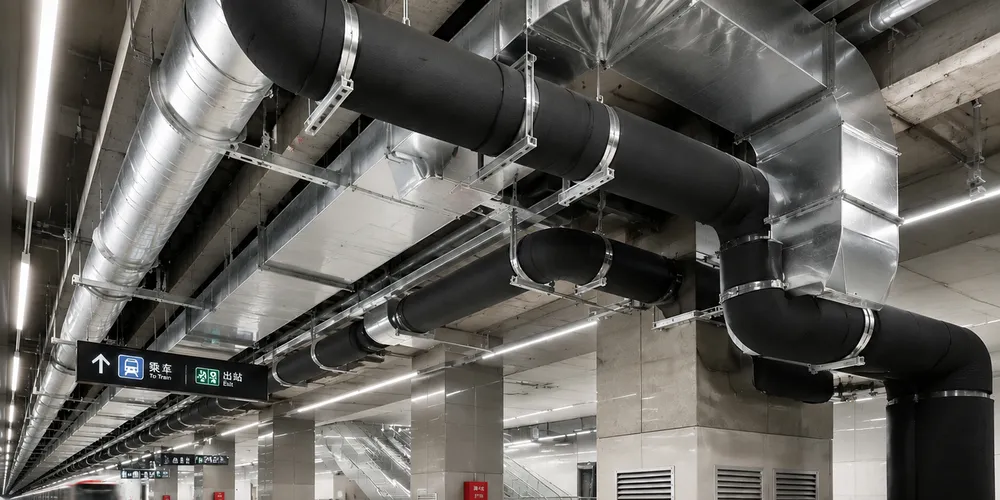

Large-Scale Commercial Complex HVAC Chilled Water Piping Insulation Project

Project Background

This project involves a landmark multi-functional commercial complex spanning over 100,000 square meters. The facility encompasses a massive shopping center, dining zones, an IMAX cinema, and premium office spaces. The HVAC system is the vital core responsible for maintaining indoor environmental stability and air quality across these high-traffic, diverse functional zones.

The Challenge

Operating an HVAC network of this scale presents severe engineering challenges:

• Massive Thermal Loss Risk: Thousands of meters of chilled and hot water pipelines travel across extended ceiling plenums, risking high energy dissipation.
• Severe Condensation Control: In high-humidity areas like dining spaces and movie theaters, inadequate insulation on cold lines would lead to severe dripping, ruining ceiling aesthetics and structural integrity.
• Tight Construction Schedule: The complexity of the piping network required highly flexible materials to accelerate installation without compromising joint sealing.

Our Solution

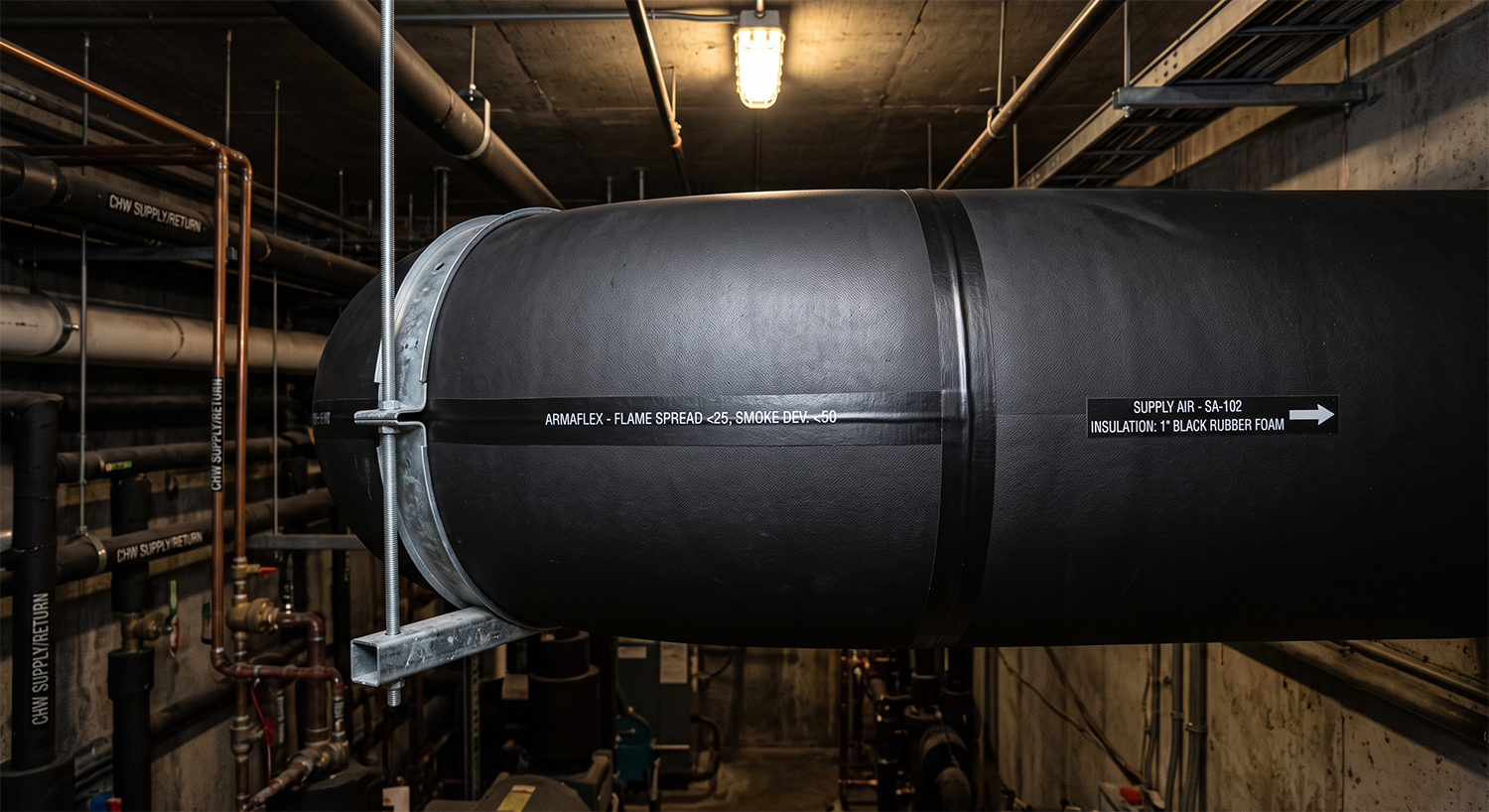

We supplied over 25,000 meters of our Premium Class B1 Closed-Cell Elastomeric Rubber Foam Insulation Pipes.

• Exceptional Thermal Efficiency: With a low thermal conductivity ($\le 0.034 \text{ W/m·K}$ at $0^\circ\text{C}$), the material effectively locked in chilled fluid temperatures from the central chiller plant.
• Superior Moisture Prevention: The continuous closed-cell structure provides a built-in vapor barrier, offering high resistance to water vapor transmission ($\mu \ge 10,000$), completely eliminating surface condensation.
• Rapid Installation Design: The exceptional flexibility of our elastomeric foam allowed on-site teams to seamlessly sleeve through tight bends, structural columns, and complex valve clusters, reducing installation time by 25%.

The Result

Comprehensive post-installation testing yielded stellar performance results:

• 15% Reduction in HVAC Energy Consumption: The overall cooling and heating efficiency of the complex improved dramatically, significantly cutting annual operational expenditures.
• Zero Condensation & Dripping: The system has been running flawlessly through peak summer humidity without a single instance of pipe sweating.
• Enhanced Safety Compliance: Achieving Class B1 self-extinguishing flame spread ratings, the insulation fully met the local municipal fire safety codes for commercial public spaces.
